Yes, SQL*Loader is Faster at Loading Records

Someone asked on StackOverflow how to get loading a 1,000,000 records to be faster in SQL Developer.

My answer was basically, don’t use SQL Developer to load 1,000,000 records, use SQL*Loader.

Now, I also reminded folks that you can USE SQL Developer to build your SQL*Loader scenario. There’s 2 ways actually:

  1. Query existing records, export to Loader (Keep Reading this post!)
  2. Point to a CSV, and use the Import Data Wizard

But Wait, What is SQL*Loader? And Why? I Already Have SQL Developer!

SQL*Loader is the primary method for quickly populating Oracle tables with data from external files. It has a powerful data parsing engine that puts little limitation on the format of the data in the datafile. SQL*Loader is invoked when you specify the sqlldr command or use the Enterprise Manager interface.

SQL*Loader is an integral feature of Oracle databases and is available in all configurations.

And here are the Docs on how to use it.

Now you may think it’s weird to tell someone not to use SQL Developer. But it’s not – I’m helping our user find the best way using our tools to accomplish their goal – load 1,000,000 rows faster. And, they can still use SQL Developer to get started.

My ‘friend’ on StackOverflow didn’t seem to believe me that it was faster, so I was asked to PROVE IT. Here we go –

Creating the Table

  "C1"   NUMBER(*, 0),
  "C2"   NUMBER(*, 0),
  "C3"   NUMBER(*, 0),
  "C4"   NUMBER(*, 0),
  "C5"   NUMBER(*, 0),
  "C6"   NUMBER(*, 0)
-- now put a million rows in it
 FOR i IN 1 .. 1000000 loop
   INSERT INTO t_million VALUES (1,2,3,4,5,6);
  END loop;

I ran this a couple of times. First run time was 22.842 seconds, and the second run was 29.858 seconds.

Oh, and let me describe my setup:

Windows 10, running VirtualBox Linux Image with 12cR2 db, using SQL Developer 18.3 on my Windows host, connecting to the db over a VBox networking port forward. And I was doing video conference AND installing Oracle 12cR2 client during my testing. So my machine was having LOTS of fun today.

Running INSERTs, row by row – in SQL Developer

I queried my table, used the SQL Developer EXPORT feature to export to an INSERT script, with no COMMITs.

And then I ran it.

And I ran it for 17 minutes and 12 seconds before getting bored and cancelling the script. So that got me 353,233 records. Which tells me we were inserting about 342 records a second.

The SQL*Loader Solution

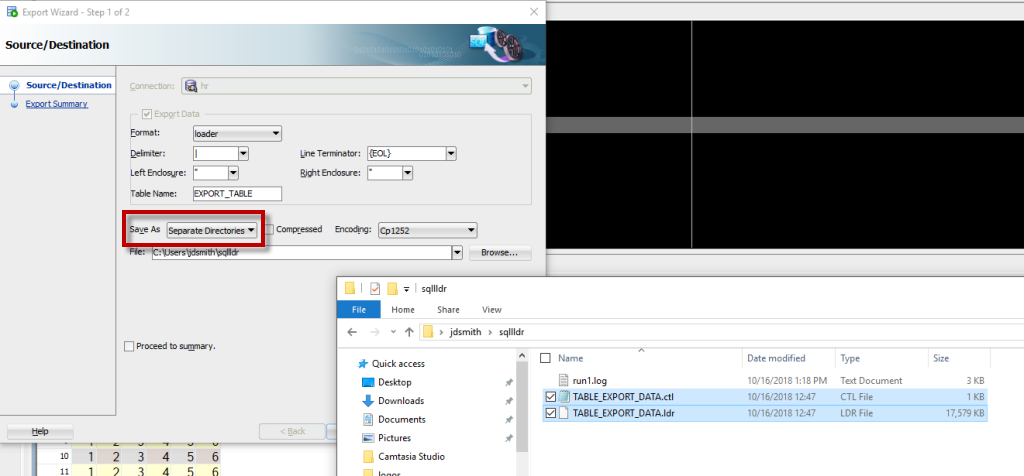

I truncated my table, and populated it again with my PL/SQL block above. Then I queried my table again and I created the SQL*Loader scenario:

Note when doing this type of export, we write our 2 different files, so you MUST select a directory to write to.

I then downloaded and installed my 12cR2 Client. (Download for Windows 64 bit)

I did a ‘Custom’ install, put down Oracle NET and the developer tools (SQL*Plus and SQL*Loader). This took about…5 minutes.

I set my $ORACLE_HOME.

I opened a CMD window, navigated to my sqlldr directory where my CTL file was, and had at it:

sqlldr hr/oracle@localhost:1521/orcl CONTROL=TABLE_EXPORT_DATA.ctl LOG=run1.log BAD=records.bad

And the Results!

  1000000 ROWS successfully loaded.
  0 ROWS NOT loaded due TO DATA errors.
  0 ROWS NOT loaded because ALL WHEN clauses were failed.
  0 ROWS NOT loaded because ALL FIELDS were NULL.
SPACE allocated FOR bind array:                  99072 bytes(64 ROWS)
READ   buffer bytes: 1048576
Total logical records skipped:          0
Total logical records READ:       1000000
Total logical records rejected:         0
Total logical records discarded:        0
Run began ON Tue Oct 16 13:17:07 2018
Run ended ON Tue Oct 16 13:18:40 2018
Elapsed TIME was:     00:01:33.01
CPU TIME was:         00:00:11.71

That, according to my math is 10,753 records inserted per second.

So, using SQL*Loader was 3,144% faster than SQL Developer.

Disclaimer: I suck at maths, so my numbers might be off, but the results are pretty clear.
Disclaimer: I did NO enhancements or tricks on either side – this was running everything at the defaults. I’m sure I could get the SQL*Loader scenario to run EVEN faster.

Connor Says: Hold My Beer

Hold My Beer Meme?

Connor from our AskTom team reminds me that there are faster ways to load this data. Specifically with these options:
OPTIONS (ERRORS=100000, BINDSIZE=8000000, ROWS=5000 )

And if you run this and BLINK, you’ll miss the magic:

SPACE allocated FOR bind array:                7740000 bytes(5000 ROWS)
READ   buffer bytes: 8000000
Total logical records skipped:          0
Total logical records READ:       1000000
Total logical records rejected:         0
Total logical records discarded:        0
Run began ON Wed Oct 17 10:13:10 2018
Run ended ON Wed Oct 17 10:13:18 2018
Elapsed TIME was:     00:00:08.49
CPU TIME was:         00:00:04.50

So we went from 1 minutes, 33 seconds to less than 9 seconds. That’s 111,111 rows per second. And this is on my crappy desktop machine connecting to a DB running in a very small Linux VM. So in real world, expect even better.

Nothing is free by they way, the read buffer goes way up…but I’ll write that check.
